Benefits of the npi's Iontophoresis Module
- Utilize ionic substances with exceptional temporal and spatial accuracy
- Focus on individual synaptic boutons – local resolution approximately 1 µm³
- Also offered as a 19″ stand-alone unit
Iontophoresis Amplifier Module Features:
- Temporal resolution: as low as 100 µs, spatial resolution: as low as 1 µm
- Emulation of synaptic activities, ideal for receptor density mapping
- Option for automated balancing of iontophoretic current
- Currents ranging from tens of pA to µA
- High-voltage, high-speed current generator
- Automated testing of electrode resistance
Compatible exclusively with EPMS-H-07!
Specifications of the npi's Iontophoresis Module
HEADSTAGES:
- Size (approx.): Standard 65x25x25 mm, holding bar diameter 8 mm, length 150 mm, mounting plate or dovetail on request,
- Electrode connector: BNC connector,
- Ground connector: 2.4 mm connector.
- Electrode output: floating current source, output impedance >1012 Ω.
MAXIMUM CURRENT: ±450 nA (±45 V) or ±1.5 µA (±150 V) into 100 MΩ load. Other ranges available on request.
DISPLAY:
- current XXXX nA, voltage XXX.X V, REL XXXX MΩ,
- separate displays for each channel, displayed value is set by a three position toggle switch.
OVER LEDs: activated 10 % below maximum current.
EJECT: ten-turn control, switch selected range max. 1 µA / 100 nA.
RETAIN: ten-turn control, max. 100 nA.
CAPACITY COMPENSATION: range 0 30 pF, ten-turn control.
OUTPUT CURRENT POLARITY: selected by INVERTED / NORMAL toggle switch.
MODE of operation:
- set with toggle switches,
- EJECT / RETAIN / AUTO switch enables manual or TTL controlled operation,
- SET / OPERATE switch connects automatically electrode outputs to an internally grounded load, to make possible well defined presetting (SET position),
TTL INPUT (AUTO mode): LO = RETAIN, HI = EJECT, isolated, Rin > 5 kΩ.
ANALOG INPUT: sensitivity 100 nA / V, Rin > 100 kΩ, range ±10 V.
CURRENT MONITOR: sensitivity 100 nA / V, Rout = 50 Ω, not isolated.
VOLTAGE MONITOR: Vel / 10, Rout = 50 Ω, not isolated.
ELECTRODE RESISTANCE TEST: obtained by application of square current pulses, ±10 nA from built-in pulse generator.
POWER REQUIREMENTS: 115 / 230 V AC, 45 – 60 W
Ordering Information
- MVCS-01M-45 Standard system - One channel system without capacity compensation, width = 1.5

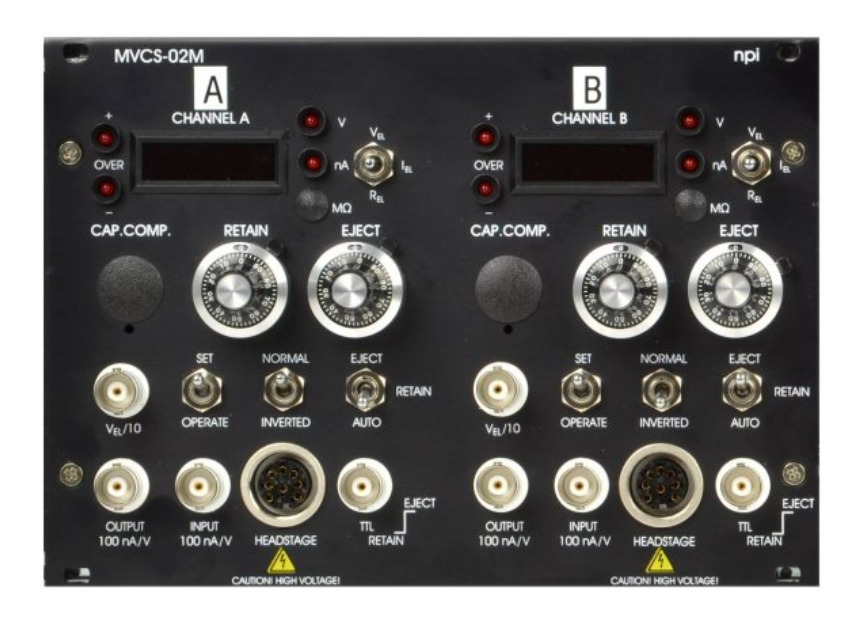

- MVCS-02M-45 Standard system - Tow channel system without capacity compensation, width = 3
- MVCC-M-45 Standard system - Balance module for up to four channels without capacity compensation, width = 1
- MVCS-C-01M-45 Very fast system - One channel system with capacity compensation, electrode resistance test and a headstage, width = 1.5
- MVCS-C-02M-45 Very fast system - Dual channel system with capacity compensation, electrode resistance test and two headstages, width = 3
- MVCC-C-M-45 Very fast system - Balance module for up to four channels with capacity compensation, electrode resistance test and a headstage, width = 1
- EH-01 Accessories - Microelectrode holder for sharp microelectrodes, 1.5 mm standard, without ports, BNC
