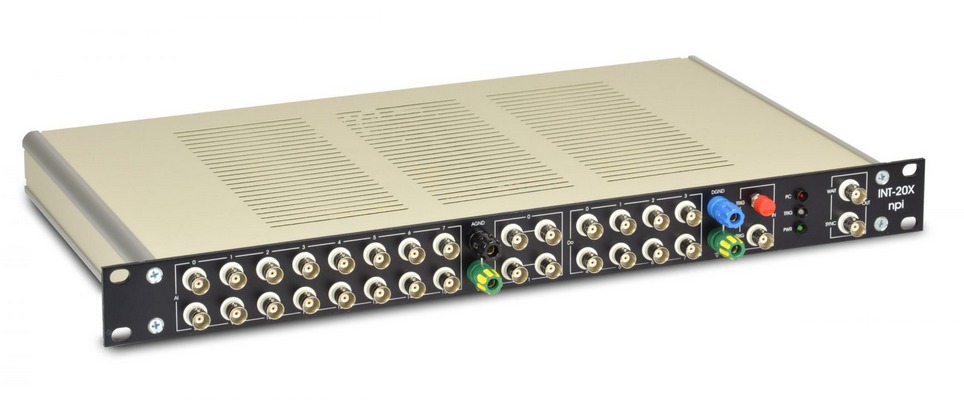

INT-20-USB – Interface for Data Acquisition

The INT-20-USB is a breakout box with a built-in USB-6341-OEM data acquisition board from National Instruments. It features 16 analog input channels, 2 analog output channels to generate analog signals and a digital port with 8 output channels.

Overview
Specifications
Links

Benefits of the INT-20-USB

High quality interface for use with open source software
Control amplifiers and other devices like pumps or light sources
Integrate with Python, MatLab or LabView
Works with free software (e.g. WinEDR, WinWCP, WinFluor)

USB Data Acquisition Interface

The INT-20-USB is a breakout box with a built-in USB-6341-OEM data acquisition board from National Instruments.

The system has 16 analog input channels, 2 analog output channels to generate analog signals and a digital port with 8 output channels. Usually this breakout box is used with self developed programs or free software, e.g. WinEDR, WinWCP, WinFluor.

All analog in- and outputs and the 8 digital lines are BNC connectors. The INT-20-USB can be triggered manually using a push button or from an external devices via TTL pulses connected to the trigger in BNC connector.

The optional digital POWER OUTPUT port with 8 lines can be used, e.g. to control magnetic valves of perfusion systems directly.

A breakout box is also available as module for the EPMS-07 system.

Specifications of the INT-20-USB

ANALOG INPUT:

Number of channels in NRSE Mode: 16
Input resistance: 1MOhm
Max. Input range: bipolar ±10V, unipolar 0..10V
Input coupling: DC

ANALOG OUTPUT:

Number of channels: 2
Voltage range: ±10V
Output coupling: DCTransfer characteristics depend on the type of board that is used.
Please read the appropriate user manual from National Instruments.

DIGITAL I/O:

Number of channels: 8
Compatibility: TTL/CMOS

POWER INPUT: External Power Input (for valve control): 6 V … 24 V (depending on valves)

POWER OUTPUT:

Maximum voltage: 11.5V (with 12V input voltage)
Maximum current (per channel, only one channel active): 500mA

DIMENSIONS: 19″ rackmount cabinet, 19″ (483 mm), 10″ (250 mm), 3.5″ (88 mm)

Ordering Information

INT-20X Breakout box for data acquisition boards of the E-series, B-series or M-series from National instruments. Valve manifolds for solution exchange (e.g. CW-VM-8PG) can be connected directly to the INT-20X.
INT-20X-USB USB 2.0 version of the INT-20X with built-in interface (USB-6221)
INT-20X-USB-1608 USB 2.0 version of the INT-20X with built-in interface (M&Q USB1608GX-2AO)
CW-SH6868 68-pole SCSI cable to connecte the INT-20X breakout box to a data acquisition board from National instruments

You can also visit site of the manufacturer.
