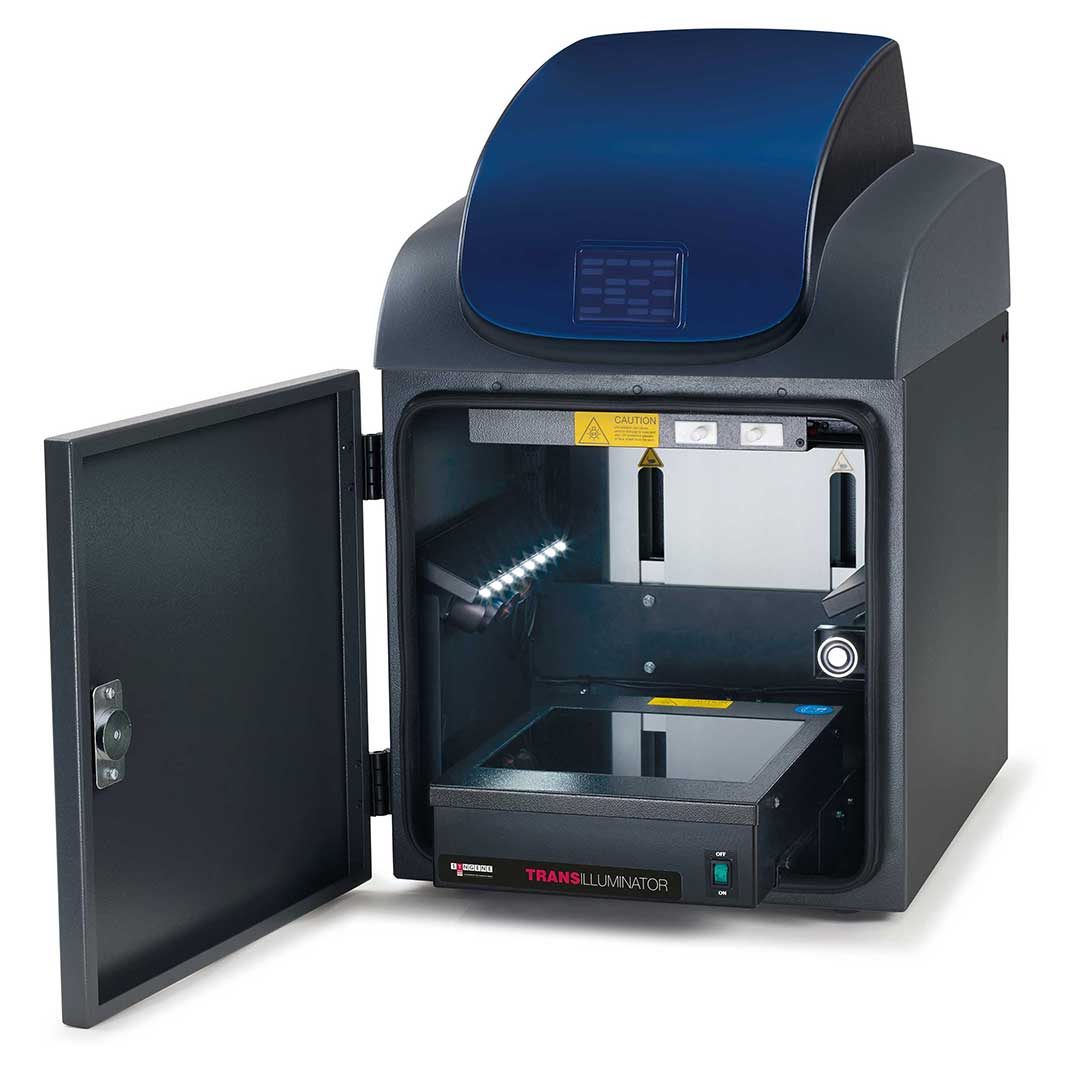

G:BOX mini 6/9 - Multi Fluorescence and Chemiluminescence Imaging System

For precise imaging small and midi fluorescence and visible gels, multiplex fluorescence westerns, stain-free gels, and chemiluminescent blots, use the G:BOX mini imaging equipment.

Compact Fluorescent and Chemi Western Blot Imaging System

Need to measure numerous fluorescent proteins on one blot and take photos of chemi blots but don't have enough room in your lab? The G:BOX mini is the portable imaging powerhouse you've been searching for, then. The Alexa Fluor® 488, 546, 647, and IR dyes provide stain-free, RGB, and IR excitation choices, so you may click to view beautiful multiplex images from a single Western.

With the G:BOX mini, you'll also receive flawlessly exposed photographs of your chemi-labeled proteins without the hassle of film. Placing your blot in the darkroom is all that is necessary. After selecting GeneSys capture program, your imager will take care of the rest with no fuss and no messy chemicals.

The G:BOX mini is a small, versatile imaging system that combines a special motor-driven stage with a 6 or 9 megapixel, cooled camera to produce accurate optical images as opposed to just digitally improved ones. Even on complicated gels, you can use a G:BOX mini to see distinct, close chemi- and fluorescent bands or spots and know that they are actually a part of your data.

The full spectrum of high intensity blue, green, red, and infrared light is covered by HI-LED lighting options, resulting in shorter exposure times and photos of publication quality.

The system comes with limitless licenses of GeneTools analysis software and is operated by GeneSys application-driven image capturing software.

Features

• It has a small footprint and frees up lots of space on any lab bench
• RGB and IR HI-LED lighting options - Multiple fluorescent proteins can be quickly quantified without stripping and re-probing
• Stain free imaging capability - Capture images of stain free acrylamide gels and many more
• Picogram or femtogram quantities can be detected using high quantum efficiency (QE) cameras
• Luxury lens (F/0.95 motor powered) with data feedback - Captures the highest quality photographs
• Automated motor powered stage with automatic focus - For actual, optical photographs
• Picture all gel and blot varieties on a single system with white, UV, and blue lighting choices
• Screen mount option with clever design - Attach a monitor quickly and safely
• Software for application-driven image capture from GeneSys has a large database of dyes and imaging techniques. GeneSys will choose the best lighting and filters based solely on the type of gel you're using to create the ideal image
• GeneTools analysis program (unlimited copies) - Analyse results at your own PC
