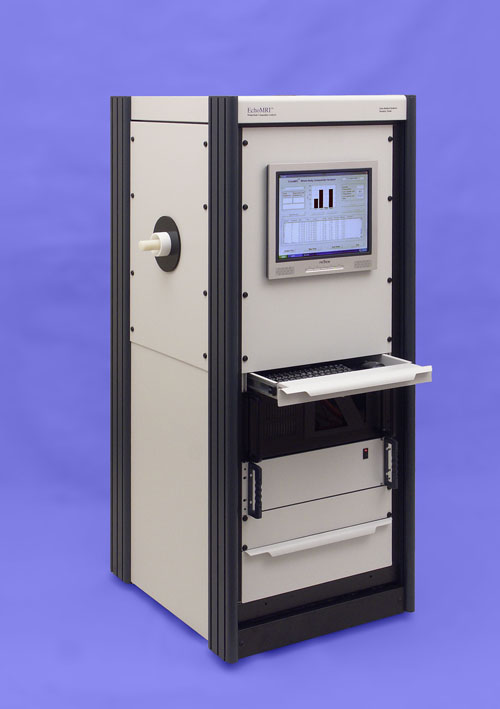

EchoMRI systems

EchoMRI are quantitative magnetic resonance systems, which allow to measure in less than 1 minute the total body fat and fat-free mass, the amount of free water and total body water volume in a living animal.

Overview
Specifications
Links

Without sedation or anesthesia, the EchoMRI™ QMR (Quantitative Magnetic Resonance) systems enable the measurement of total body fat and fat-free mass, free water, and total body water in live animals weighing less than 100g (EchoMRI-100/130 and EchoMRI-3in1) to 1100g (EchoMRI-500/700/900/1100 and EchoMRI-4in1) in less than 1 minute. The system's optional tissue probe for organs and specimens weighing up to 10g and biopsy probe for samples up to 300mlg are both advantages for researchers (EchoMRI-3in1/4in1).

The system is simple to use and doesn't require any specialized skills. Automatic data analysis saves the findings in Excel, Access, or other text-based formats.

The system is a single item that is simple to install. The system is fully insulated, compatible with common power sources, and secure to operate.

EchoMRI model	100V (vertical)	100H (horizontal)	130	500	700	900	1100
Sample weight	Less than 100 g		Less than 130 g	Less than 500 g	Less than 700 g	Less than 900 g	Less than 1100 g
Retainers for different weights	20, 40, 60, 80 and 100 g		20, 40, 60, 80, 100 and 130 g	300 and 500 g	300, 500 and 700 g	300, 500, 700 and 900 g	300, 500, 700, 900 and 1100 g
	(Up to 3 holders can be used at the same time)
System (general)
Output	Body fat mass, non-fat mass, free water and total body water volume
Measuring time	0.5 — 3.2 minutes (depending on measurement accuracy)
Calibration	Not required after installation
Recordings	Automatic saving to the file system and database
Operating system	Windows XP Professional Edition
Input	In ASCII file format
Output data formats	Excel, Access, ASCII
Additional ports	USB 2.0 / 1 RJ45 CAT-5 10/100Mb network card
Display	17” LCD screen
Electrical	1 output on 115/230V AC,50-60Hz,500W, 8A/4.5A
Shielding	Except for two hemispherical volumes with a radius of 9" that are situated across from the gentry (the part containing the scanning equipment), the external magnetic field outside the system is less than 5 Gauss.
Installation weight	225 kg
Dimensions	61cm x 61cm x 125cm (61cm x 71cm x 132cm for EchoMRI-100V)
Optional	Increased accuracy for smaller samples (compatible with EchoMRI-500/700/900/1100 models)
P100	Special system test specimen and holders (for animals weighing less than 100g, retainers for 20, 40, 60, 80 and 100g)
A100	Special additional sensor, system test sample and holders (for animals weighing less than 100g, retainers for 20, 40, 60, 80 and 100g)
A10	Special additional sensor, system test sample and holders (for animals weighing less than 10g, 6.8x25.4mm retainer) Special additional sensor, system test sample and holders (for animals weighing less than 10g, 6.8x25.4mm retainer)

EchoMRI model	EchoMRI-3in1	EchoMRI-4in1/500	EchoMRI-4in1/700	EchoMRI-4in1/900	EchoMRI-4in1/1100
Sample weight	Less than 100 g	Less than 500 g	Less than 700 g	Less than 900 g	Less than 1100 g
Retainers for different weights	20, 40, 60, 80 and 100 g	300 and 500 g	300, 500 and 700 g	300, 500, 700 and 900 g	300, 500, 700, 900 and 1100 g
	(Up to 3 holders can be used at the same time)
Additional probes
Straight horizontal probe	-------	Sample up to 500 g	Sample up to 700 g	Sample up to 900 g	Sample up to 1100 g
Straight vertical probe	Sample up to 100 g
Tissue probe	Sample up to 10 g
Biopsy probe	Sample up to 300 mlg
System (general)
Output	Body fat mass, non-fat mass, free water and total body water volume
Measuring time	0.5 — 3.2 minutes (depending on measurement accuracy)
Calibration	Not required after installation
Recordings	Automatic saving to the file system and database
Operating system	Windows XP Professional Edition
Input	In ASCII file format
Output data formats	Excel, Access, ASCII
Additional ports	USB 2.0 / 1 RJ45 CAT-5 10/100Mb network card
Display	17” LCD screen
Electrical	1 output on 115/230V AC,50-60Hz,500W, 8A/4.5A
Shielding	Outside the system the external magnetic field is less than 5 Gauss, except for two hemispherical volumes with a radius of 9" located opposite the gentry (the part containing the scanning equipment)
Installation weight	225 kg
Dimensions	121cm x 71cm x 132cm (61cm x 71cm x 132cm for EchoMRI-3in1 system)

You can also visit site of the manufacturer.
