Bio Amps: ECG / EKG, EEG, EOG, & EMG Biological Amplifiers

ADInstruments Bio Amps are galvanically isolated, high-performance differential biological potential amplifiers optimized to measure a wide variety of biological signals such as ECG / EKG, EMG, EOG, and EEG recordings.

Overview
Specifications
Links

The high-performance, differential biological potential amplifiers known as ADInstruments Bio Amps are galvanically isolated and designed to assess a wide range of biological signals, including ECG/EKG, EMG, EOG, and EEG recordings.

A number of filters, including the following, are available for processing biosignals from many study fields in conjunction with a PowerLab and LabChart:

Autonomic and sympathetic nervous system function
Cardiovascular disease and myocardial dysfunction
Muscle activation and fatigue
Evoked responses and stimulation
Heart rate variability/arrhythmia

Single, Duo, Quad, and Octal Bio Amps are equipped with Lead Wires and Bio Amp Connecting Cables, making them acceptable and secure for connecting to both people and animals. Also accessible for signal monitoring is an audio output.

The following items are compatible with Bio Amps:

Reusable ECG Electrodes
Chest ECG Electrodes (suction)
EEG Flat Electrodes
ECG Lead Switch Box
EEG Cap Systems
Adapter Packs
Octal Bio Amp Linking Cables

Signal conditioners from ADInstruments are incompatible with other data acquisition systems and only work with PowerLab data acquisition devices.

Configurations

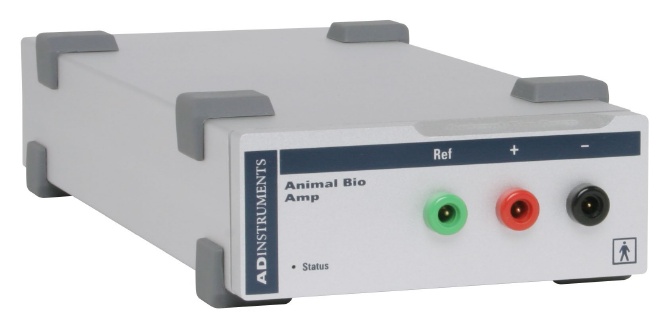

Bio Amp

FE231

The Bio Amp is a high-performance differential bio amplifier that is galvanically isolated and designed for the measurement of a wide range of biological signals, including ECG (EKG), EMG, EOG, and EEG recordings. It has a choice of filter settings and quality noise standards.

Dual Bio Amp

FE232

The Dual Bio Amp has two galvanically separated, high-performance differential amplifiers that are designed to monitor a wide range of biological signals, including ECG (EKG), EMG, EOG, and EEG recordings. It also has a choice of filter settings and quality noise standards.

Quad Bio Amp

FE234

The Quad Bio Amp consists of four galvanically isolated, high performance differential amplifiers with a range of filter settings and quality noise specifications that are optimized for the evaluation of a broad variety of biological signals.

Octal Bio Amp

FE238

The Octal Bio Amp comprises of eight galvanically isolated, high performance differential amplifiers with a range of filter settings and quality noise standards that are designed for the evaluation of a broad variety of biological signals.

Features

To ensure subject safety, there is complete electrical isolation from power-line (mains) circuitry
A differential amplifier with high gain and low noise that is specifically made for measuring biological signals
Low-pass, high-pass, and notch filters can be controlled by software to cut out undesired signal frequencies
EMG or EEG signals and comparable signals can be used with audio output
PowerLab data collecting systems are seamlessly integrated
Software gain control ensures that LabChart's scaling of your data is always accurate
Bio Amps are appropriate for connecting with both people and animals
Suitable for LabChart 8.1.12 or later

Single Bio Amp

Input

Connection type: Three shrouded 1.5mm male pin sockets
Input configuration: 1 isolated differential channel with isolated ground reference or right leg drive
Input impedance: >1 GΩ differential, <100 pF (no cable) or 500 pF (supplied shielded Bio Amp cable and leads) to isolated ground
Isolation: 4000 Vrms (50 Hz for 1 minute)
Input ranges: ±100 μV to ±100 mV full scale in 10 steps (combined PowerLab and Bio Amp)
Gain accuracy: ±1.5 % all ranges
Non-linearity: <0.2% within range
Noise at various bandwidths:
- 1 Hz to 10 kHz: <1.2 μVrms (<12 mV p-p)
- 0.3 Hz to 1 kHz: <0.5 μVrms
- 0.1 Hz to 100 Hz: <0.4 μVrms
IMRR (isolation mode): >130 dB (to non-isolated earth, 50 Hz)
CMRR (common mode): >60 dB typical (150K electrode impedance, 5K imbalance @50Hz and 60Hz). >100dB typical (Balanced electrode impedance @50Hz and 60Hz)
Input leakage current: <4 μArms @ 240 V, 50 Hz
DC tolerance: ±370 mV
Baseline restoration: Automatic or manual

Filtering

Low-pass filtering: Frequencies software-selectable: 50, 100, 200, 500, 1000, 2000, 5000, 10000 Hz, Off
High-pass filtering: Frequencies software-selectable: D.C., 0.0003, 0.001, 0.003, 0.01, 0.03, 0.1, 0.3, 1, 3,10, 30, 100, 200, 300 Hz
Adaptive mains filter: 50 or 60Hz frequency

Output

Signal: ±4.5 V maximum
Audio output: 3.5 mm (0.14") stereo output socket suitable for direct headphone or powered speaker connection. Output selectable from software.

Control Port

I2C port: Provides control and power. Interface communications rate of ~50 kbits/s.

Physical Configuration

Dimensions (h × w × d): 55 mm × 120 mm × 260 mm (2.2" × 4.7" × 10.2")
Weight: 1.3 kg (2 lb 12 oz)
Power requirements: ~2 W
Operating conditions: 5-35 °C. 0 to 90% humidity (non-condensing)
Transport / Storage conditions: 0-40 °C. 0-95% humidity (non-condensing)

Safety / Regulatory Information

Safety: Complies with IEC 60601-1:2012
EMC: Complies with IEC 60601-1-2:2014

Dual Bio Amp

Input

Connection type: Six-pin DIN/MS socket to fit 5-lead Bio Amp Cable (Tronomed D-1540)
Input configuration: 2 isolated differential channels with common isolated ground reference or right leg drive
Input impedance: >1 GΩ differential, <100 pF (no cable) to isolated ground or 500 pF(supplied shielded Bio Amp Cable and leads) to isolated ground
Isolation: 4000 Vrms (50 Hz for 1 minute)
Input ranges: ±100 μV to ±100 mV full scale in 10 steps (combined PowerLab and Bio Amp)
Gain accuracy: ±1.5 % all ranges
Non-linearity: <0.2% within range
Noise at various bandwidths:
- 1 Hz to 10 kHz: <1.2 μVrms (<12 mV p-p)
- 0.3 Hz to 1 kHz: <0.5 μVrms
- 0.1 Hz to 100 Hz: <0.4 μVrms
IMRR (isolation mode): >130 dB (to non-isolated earth, 50 Hz)
CMRR (common mode): >60 dB typical (150K electrode impedance, 5K imbalance @50Hz and 60Hz). >100dB typical (Balanced electrode impedance @50Hz and 60Hz)
Input leakage current: <4 μArms @ 240 V, 50 Hz
DC tolerance: ±370 mV
Baseline restoration: Automatic or manual

Filtering

Low-pass filtering: Frequencies software-selectable: 50, 100, 200, 500, 1000, 2000, 5000, 10000 Hz, Off
High-pass filtering: Frequencies software-selectable: D.C., 0.0003, 0.001, 0.003, 0.01, 0.03, 0.1, 0.3, 1, 3,10, 30, 100, 200, 300 Hz
Adaptive mains filter: 50 or 60Hz frequency

Output

Signal: ±4.5 V maximum
Audio output: 3.5 mm (0.14") stereo output socket suitable for direct headphone or powered speaker connection. Output selectable from software.

Control Port

I2C port Provides control and power. Interface communications rate of ~50 Kbits/s.

Physical Configuration

Dimensions (h × w × d): 55 mm × 120 mm × 260 mm (2.2" × 4.7" × 10.2")
Weight: 1.3 kg (2 lb 12oz)
Power requirements: ~3 W
Operating conditions: 5-35 °C. 0 to 90% humidity (non-condensing)
Transport / Storage conditions: 0-40 °C. 0-95% humidity (non-condensing)

Safety / Regulatory Information

Safety: Complies with IEC 60601-1:2012
EMC: Complies with IEC 60601-1-2:2014

Quad/Octal Bio Amp

Input

Connection type: 9 x 1.5 mm (Quad) or 17 x 1.5 mm (Octal) single pin shrouded male socket
Input configuration: 4 (Quad) or 8 (Octal) isolated differential channels with common isolated ground reference or right leg drive
Input impedance: >1 GΩ differential, <100 pF (no cable) to isolated ground
Isolation: 4000 Vrms (50 Hz for 1 minute)
Amplification ranges: ±100 μV to ±100 mV full scale in 10 steps (combined PowerLab and Bio Amp)
Gain accuracy: ±1.5 % all ranges
Non-linearity: <0.2 % within range
Noise at various bandwidths:
- 1 Hz to 10 kHz: <1.2 μVrms (<12 μV p-p)
- 0.3 Hz to 1 kHz: <0.5 μVrms
- 0.1 Hz to 100 Hz: <0.4 μVrms
IMRR (isolation mode): >130 dB (to non-isolated earth, 50 Hz)
CMRR (common mode): >60 dB typical (150K electrode impedance, 5K imbalance @50Hz and 60Hz). >100dB typical (Balanced electrode impedance @50Hz and 60Hz)
Input leakage current: <4 μArms @ 240 V, 50 Hz
DC tolerance: ±370 mV
Baseline restoration: Automatic or manual

Filtering

Low-pass filtering: Frequencies software-selectable: 50, 100, 200, 500, 1000, 2000, 5000, 10000 Hz, Off
High-pass filtering: Frequencies software-selectable: D.C., 0.0003, 0.001, 0.003, 0.01, 0.03, 0.1, 0.3, 1, 3,10, 30, 100, 200, 300 Hz
Adaptive mains filter: 50 or 60Hz frequency

Output

Signal: ±4.5 V maximum
Audio output: 3.5mm stereo output socket suitable for direct headphone or powered speaker connection. Output selectable from software.

Control Port

I2C port: Provides control and power. Interface commun ications rate of ~50kbits/s.

Physical Configuration

Dimensions (h × w × d): 70 mm × 240 mm × 260 mm (2.7" × 9.45" × 10.2")
Weight: 2.5 kg (5.5 lb)
Power requirements: ~4.5 W (Quad), ~7 W (Octal)
Operating conditions: 5-35 °C. 0 to 90% humidity (non-condensing)
Transport / Storage conditions: 0-40 °C. 0-95% humidity (non-condensing)

Safety / Regulatory Information

Safety: Complies with IEC 60601-1:2012
EMC: Complies with IEC 60601-1-2:2014

ADInstruments reserves the right to alter these specifications at any time.

Product Codes

FE231 Bio Amp
FE232 Dual Bio Amp
FE234 Quad Bio Amp
FE238 Octal Bio Amp
