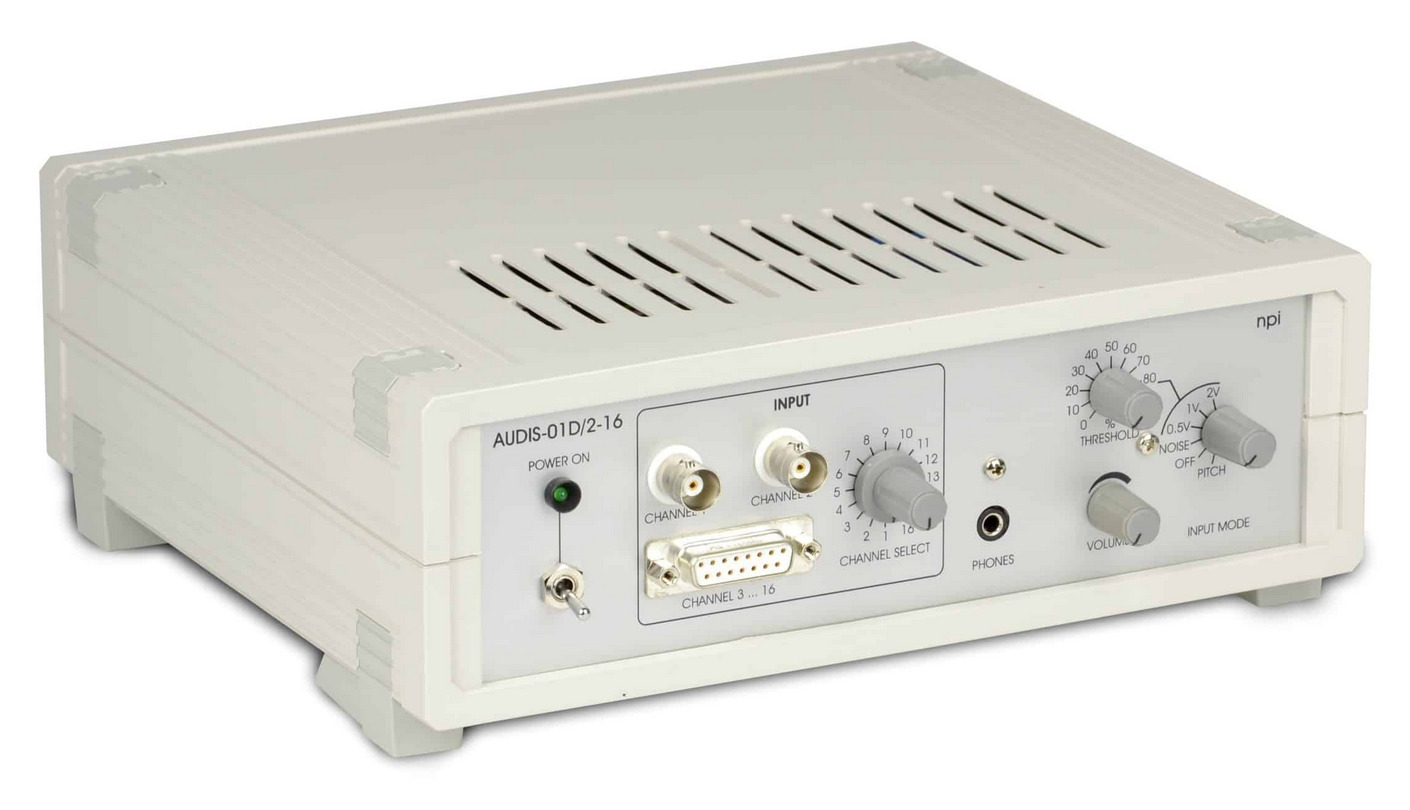

AUDIS-01D/2-16 – Audio Monitor

Advantages of the AUDIS-01D/2-16

• Two BNC inputs located on the rear panel
• Capability to accommodate up to 16 channels through an optional adapter cable
• Noise and Pitch operational modes
• Integrated speaker and headphone jack

Desktop Audio Monitor

The AUDIS-01D/2-16 serves as a digital acoustic monitor housed in a compact desktop cabinet, featuring a built-in loudspeaker and two distinct audio modes. In PITCH mode, the voltage input signal is transformed into a tone, while in NOISE mode, the signal undergoes highpass filtering to facilitate noise monitoring. A THRESHOLD function (available in NOISE mode) can be employed to mask the baseline noise.

Features:

• Two operational modes
  • PITCH mode: transforms the input signal into a tone
  • NOISE mode: applies highpass filtering to the input signal for noise monitoring
• THRESHOLD function determines the level for NOISE mode
• THRESHOLD offers 3 adjustable ranges (0.5V, 1V, or 2V maximum)
• Includes fine-tuning options as a percentage of the maximum value
• Supports up to 16 input channels (2 with BNC connectors, additional channels via breakout cable)
• Equipped with a built-in speaker featuring volume control
• HEAD PHONES 3.5 mm stereo jack audio connector
