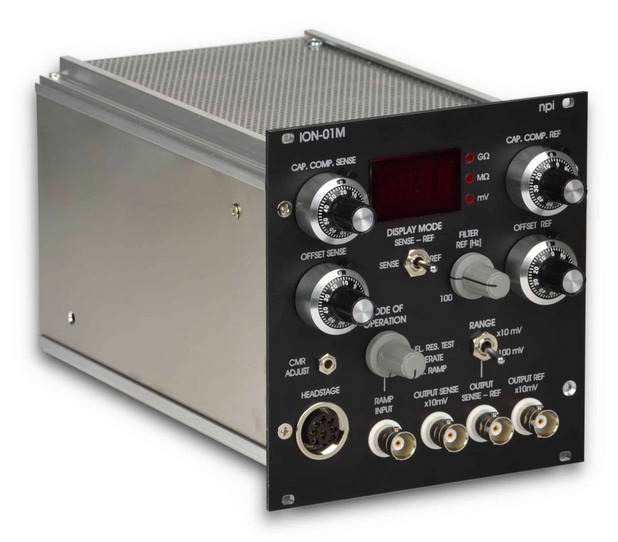

ION-01M – Amplifier Module for Ion-Sensitive Electrodes

Advantages of the ION-01M:

• Capture the tiniest ion currents
• Reference electrode featuring high common mode rejection
• Capacitance compensation for both the electrode and reference

Features:

• Differential input: cmr >120 dB @ gain 100
• Input impedance: >100 TΩ; ultra-low BIAS current <100 fA
• Input voltage range: 1000 mV DC
• Inputs equipped with a compact headstage, Teflon isolated connector
• Integrated holder for electrodes
• OFFSET compensation available for both inputs; range: ±100 mV
• C.COMP. for both inputs; range: 0 – 30 pF
• Low-pass filter for REF input to enhance AC cmr
• Output gain: x10 or x100; range: ±12 V
• Digital display: XXX.X mV
• Electrode resistance measurement: XXX.X MΩ or XX.XX GΩ
• Built-in ramp generator: 1.5 V / s., with external signal input option available
