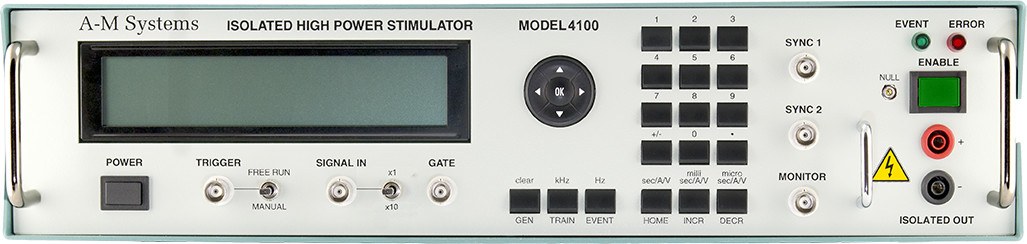

Model 4100 Isolated High Power Stimulator

The Workhorse Stimulator in Your Lab, Offering Maximum Performance at a Reasonable Price: More capability, more power, and more connectivity!

Key Features:

• Powerful: ± 200 V pulses at 100 mA with duration from 1 µS to 25 hours
• Flexible: monophasic, biphasic, ramps, and user-defined waveforms
• Convenient: front panel controls, Windows, Apple, LabVIEW, MATLAB, and Android

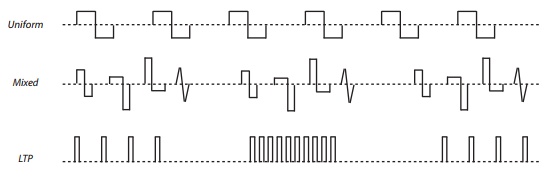

The stimulation trains produced by the Model 4100 stimulator include ramping, biphasic, and/or monophasic waveforms. Numerous widely used protocols, like as LTP/LTD stimulation studies, Paired Pulses protocols, and Stepped Pulse paradigms, can be set to be delivered using the Model 4100.

In its field, the Model 4100 stimulator is expected to achieve superior performance. It has pulse lengths ranging from 1 µs to 25 hours. Because the stimulator is line-powered and has built-in isolation, changing batteries during an experiment is not necessary. The Model 4100 Isolated High Power Programmable Stimulator is more potent than the Model 2100, with the ability to produce ±200 V pulses at 100 mA.

It is possible to choose between constant voltage and constant current modes for the Model 4100's output. It is not necessary to buy pricey external stimulus isolation units because the high power output signal is separated.

Features:

• Long timing range: 1 microsecond to over 25 hours
• Complete computer control, including Windows, OSx, iOS, LabView, Matlab, and Android.

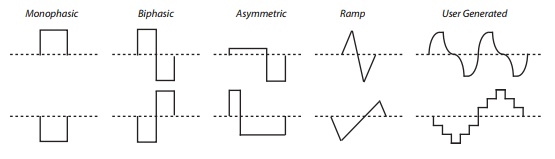

• Monophasic, Biphasic, Ramp, or User-generated custom waveforms
• Isolated output current up to 100 mA;
• Isolated output voltage up to ±200 V
• 1 MHz Bandwidth
• Easy-to-use front panel interface
• Free-run, Manual, or External triggering
• Status lights indicate operational state and setup/control errors
• Sync outputs for multiple critical timing parameters
• No battery or expensive external SIUs required
• Includes rack mount hardware
• Includes instruction manual
• 3-year warranty

Do you wish to isolate, scale, and convert a special, customized, or biologically generated signal into a continuous current?

The Model 4100's external signal-in circuitry can be used to transform your signal into an isolated stimulation current.

The Model 4100 Isolated High Power Stimulator is frequently used for the following purposes, among others:

• long-term potentiation (LTP)
• long-term depression (LTD)
• classical conditioning
• field stimulation
• nerve conduction
• evoked potentials
• lesions
• kindling/seizure models
