AL-1000

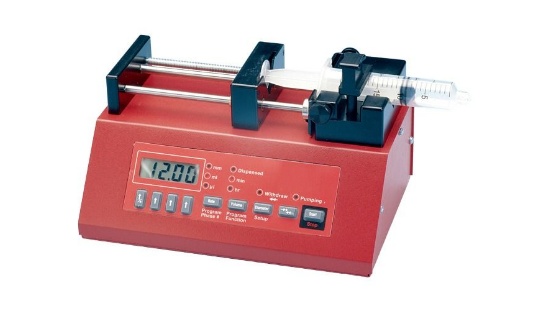

Aladdin Single-Syringe Pump, High Pressure AL-1000

The AL-1000 supports programmed infusion and suction with plastic syringes up to 60 ml and individual glass microsyringes of 0.5-500 µL.

Overview
Specifications
Links

The market's best price for high pressure syringe pumps!

Holds up to 140 mL in 1 syringe (200 mL partially filled)
Infusion rates range from 1 mL per hour to 340.6 mL per minute (140 mL syringe)
Simple keypad user interface
Compact Chassis: Just 11 1/4" x 6 1/8" in foot print size
Won't occupy extra room on your production or laboratory bench.
Includes all of the Aladdin series' sophisticated features and programming.
100 lbs (AL-1000HP) or 200 lbs (AL-1000HP2) of force are available

Options

MODEL	STYLE	# Pumps	High Pressure	Programmable	Infuse/Withdraw
AL-1000HP	Single Syringe Pump	1	Yes	Yes	Infuse/Withdraw

Mechanical & Electrical

SYRINGE SIZES	Plastic syringes up to 60mL; selected glass micro syringes from 0.5-500 uL
NUMBER OF SYRINGES	1
MOTOR TYPE	Step Motor, 1/8 to 1/2 step modes
STEPS PER REVOLUTIONS	200
STEPPING (max. min.)	0.425µm (1/8 stepping) to 1.701µm (1/2 stepping)
MOTOR TO DRIVE SCREW RATIO	15/28
SPEED (max./min.)	18.4 cm/min / 0.0084 cm/hr
PUMPING RATES	6120 mL/hr with 60 mL syringe, to 1.459 µL/hr with 1 mL syringe
MAXIMUM FORCE	100 lb. at min. speed, 18 lb. at max. speed
NUMBER OF PROGRAM PHASES	41
RS-232 PUMP NETWORK	100 pumps maximum
POWER supply	Wall adapter 12 V DC @ 850 mA
DIMENSIONS	22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT	1.6 kg (3.6 lb.)

MODEL	STYLE	STALL DETECTION	NUMBER OF SYRINGES	MAX SYRINGE SIZE
AL-1000HP2	Single Syringe Pump	No	1	140mL (200mL partially filled 160mL)

Mechanical & Electrical

DRIVE BLOCK TYPE	Solid (Must use Purge Function to move pusher block)
MOTOR TYPE	Step motor
MOTOR STEP/REVOLUTION	200
MOTOR TO DRIVE SCREW RATIO	14/22
DRIVE SCREW PITCH	20 revolutions/"
POWER SUPPLY TYPE	External, country and power specific
POWER SUPPLY OUTPUT RATING	24V DC @ 1200mA
POWER CONNECTOR	2.1 mm, center positive, DC
VOLTAGE AT POWER CONNECTOR	24V DC at full load
AMPERAGE	1200mA at full load
DIMENSIONS	11 1/4" x 6 1/8" x 6 3/8" (LxWxH)
WEIGHT	7.8125 lbs (3.55lkg)

Operational

MAX FORCE	200 LBS
MICRO-STEPPING	1/8 to 1/1 depending on motor speed
ADVANCE PER STEP	0.50511364 um to 4.040909 um depending on motor speed
MAX SPEED	30.033 cm/min
MIN SPEED	0.00998882 cm/hr
MAX PUMPING RATE	340.6 mL/min with a 140mL syringe
MIN PUMPING RATE	1.733 uL/hr with B-D 1 mL syringe
SYRINGE INSIDE DIAMETER RANGE	0.100 to 50.00 mm
NUMBER OF PROGRAM PHASES	41
RS-232 PUMP NETWORK	100 pumps MAX
RS-232 SELECTABLE BAUD RATES	300, 1200, 2400, 9600, 19200
